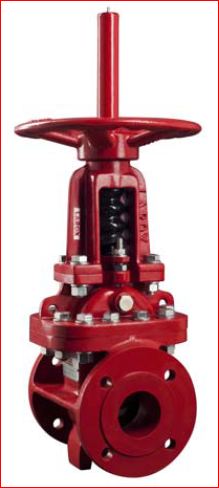

The new Larox (Flowrox)rotating disc valve is for use in the most arduous, abrasive, aggressive and corrosive applications
The disc rotates by a few degrees at every opening / closing cycle preventing wear being focused in one location
All wear parts are fully replaceable in situ avoiding having to remove the valves for servicel or inspection

Sizes from 50mm up to 600mm
Pressure ratings from 10bar up to 100bar
Actuators available in manual, manual gear, pneumatic, hydraulic and electric motor operated designs
Flange patterns available ANSI, DIN, BS, JS, SABS

Larox/LRD.JPG

  • No blocking or leakage
  • Zero leakage to atmosphere or environment
  • No Sticking
  • Extended wear life due to rotating disc
  • Self cleaning gate action
  • Bi-directional sealing
  • Repacking of gland stem seals under pressure
  • Wedge for positive sealing
  • Cut away in body for cleaning of seat
  • Rising or non rising spindle design
  • Rotating disc valve applications
  • Mining and quarrying
  • Mineral processing
  • Power generation
  • Sand and gravel recovery transfer
  • Chemical and process industries
  • Paper and pulp processing
  • Water and wastewater treatment
  • Bulk solids handling and transfer

Click here to download LRD pdf file
