Larox are the Benchmark in Abrasion Resistant Pump and Valve Technoloy
Larox Manual Valve Group.jpg

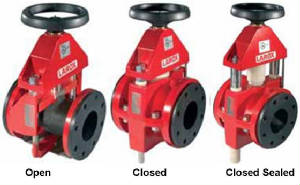

Larox manual valve body types

Larox pinch valves are available in four main body designs
Open (PV) type used in low hazard, lower pressure / temperature applications.


Enclosed
type (PVE) most common type protects the sleeve in harsh environments prolonging sleeve life

Enclosed Sealed (PVES) used for hazardous media, the body, stem and side bars are all sealed with o-rings

Larox/PVS.jpg
PVS Sealed Body

Sealed Body (PVS) type used in hazardous applications
Ideal for high pressure use. The body, stem and side bars
are completely enclosed providing a 100% leak free installation




Larox pinch valves are available in a variety of materials depending upon design requirements such as fabricated carbon steel, cast iron, stainless steel, alluminium and non metlic type (see PVEG page)
