Auto Desludging for Effluent Treatment Plants and Sludge Processing

THE OPERATING PRINCIPLE OF A LAROX PERISTALTIC PUMP
The operating principle of the LPP pump is based on the peristaltic effect. As the cylindrical rotor rotates along the hose, the process medium gets pushed forward through the hose. At the same time, the hose behind the compression point reverts to its original circular shape creating a suction effect at the pump inlet port. As a result, the hose bore gets filled with the medium. No backward flow can occur as the hose is squeezed tight by the roller

Standard hose pumps (Peristaltic Pumps) use rotors that have multiple plates or shoes that slide against the pump hose to create flow. This obviously causes friction and heat, in some sludge treatment processes, heat is already present due to biochemical reaction. This combination of friction and latent heat prevents pumps being operated continuously, reduces hose life, increases service intervals and down time, they also require high levels of lubricants inside the rotor chamber.
All of these factors incur additional cost to YOU

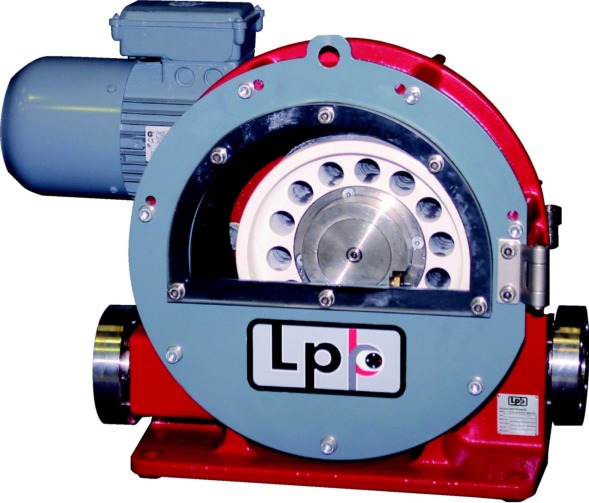

LAROX PERISTALTIC PUMPS (LPP) ONE COMPRESSION IS ALL YOU NEED
The Larox pump has a single roller that rotates during operation, this eliminates friction and minimises heat, enabling the pump to run continuously, at temperature with minimal quantities of lubricant. The single roller design is also extremely efficient in comparison to other designs.

A single, bearing-mounted roller presses against the hose only once per the 360 degree operating cycle, producing the maximum flow per revolution and offering the longest lifetime possible

We will stock replacement hoses for your pumps

Download video on Larox pumps as seen on CNBC and Fox Business News at http://63.139.63.100/laroxflowsys/ and then click on Larox Flowsys 101507.wmv, introduction by General Al Haig
